CNC Machining Built Around Your Specs
ACAL provides custom services to engineers, product developers, and designers. Our highly qualified machine shop can make any customer design, simple or complex.
Provide us with a print or CAD file to get a price, lead time, and design-for-manufacturability feedback on your custom CNC parts. Our fast CNC machining capabilities include services for metals and plastics with flexible production and shipping options to meet you at the perfect price and product development stage
Advanced Machining Services
ACAL offers 3-axis, 4-axis, and 5-axis milling and turning. Having the ability to turn both multi-axis in milling and turning allows for a quicker turnaround on jobs with fewer setups.

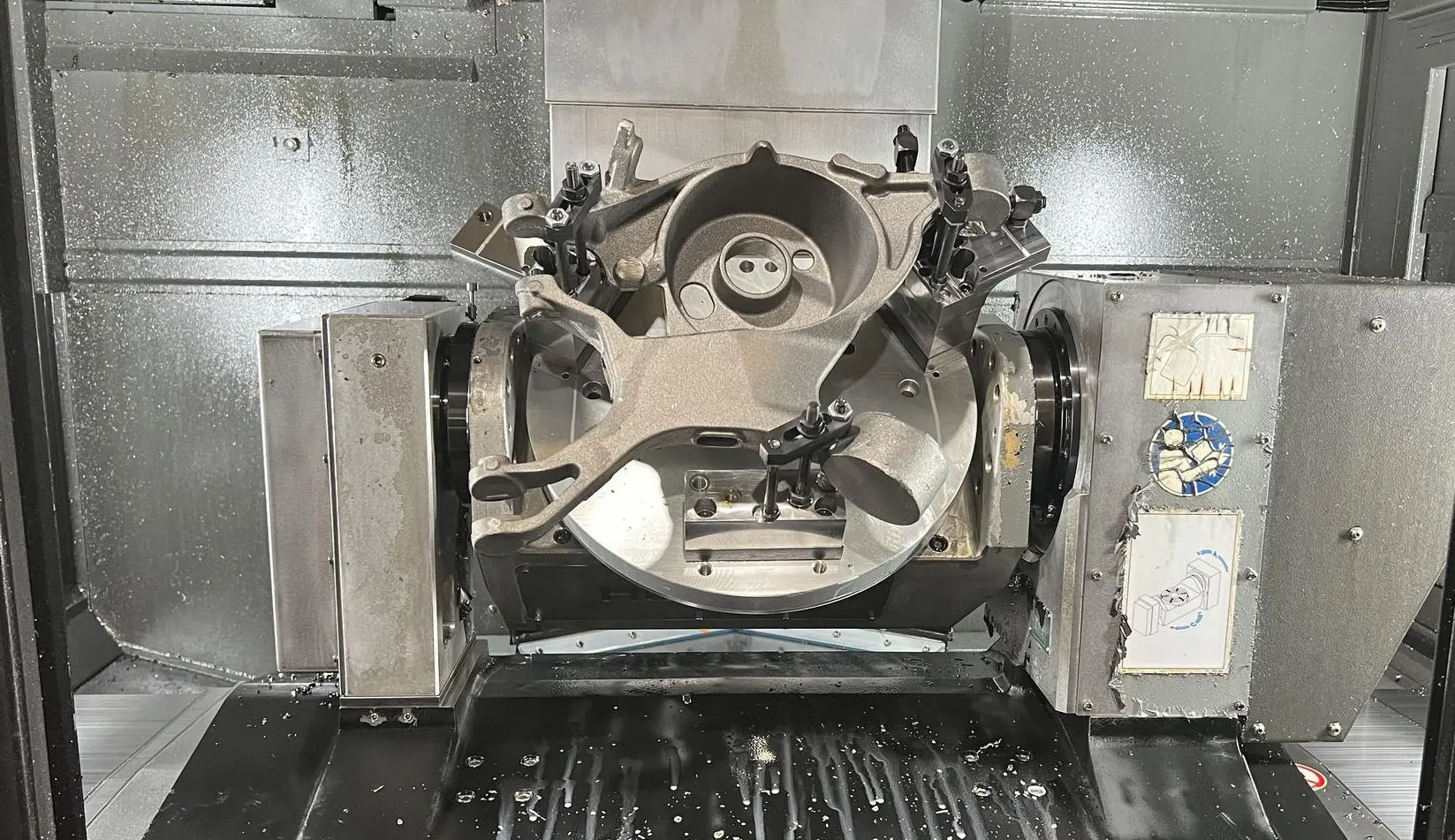

5-Axis Machining
Text Goes Here

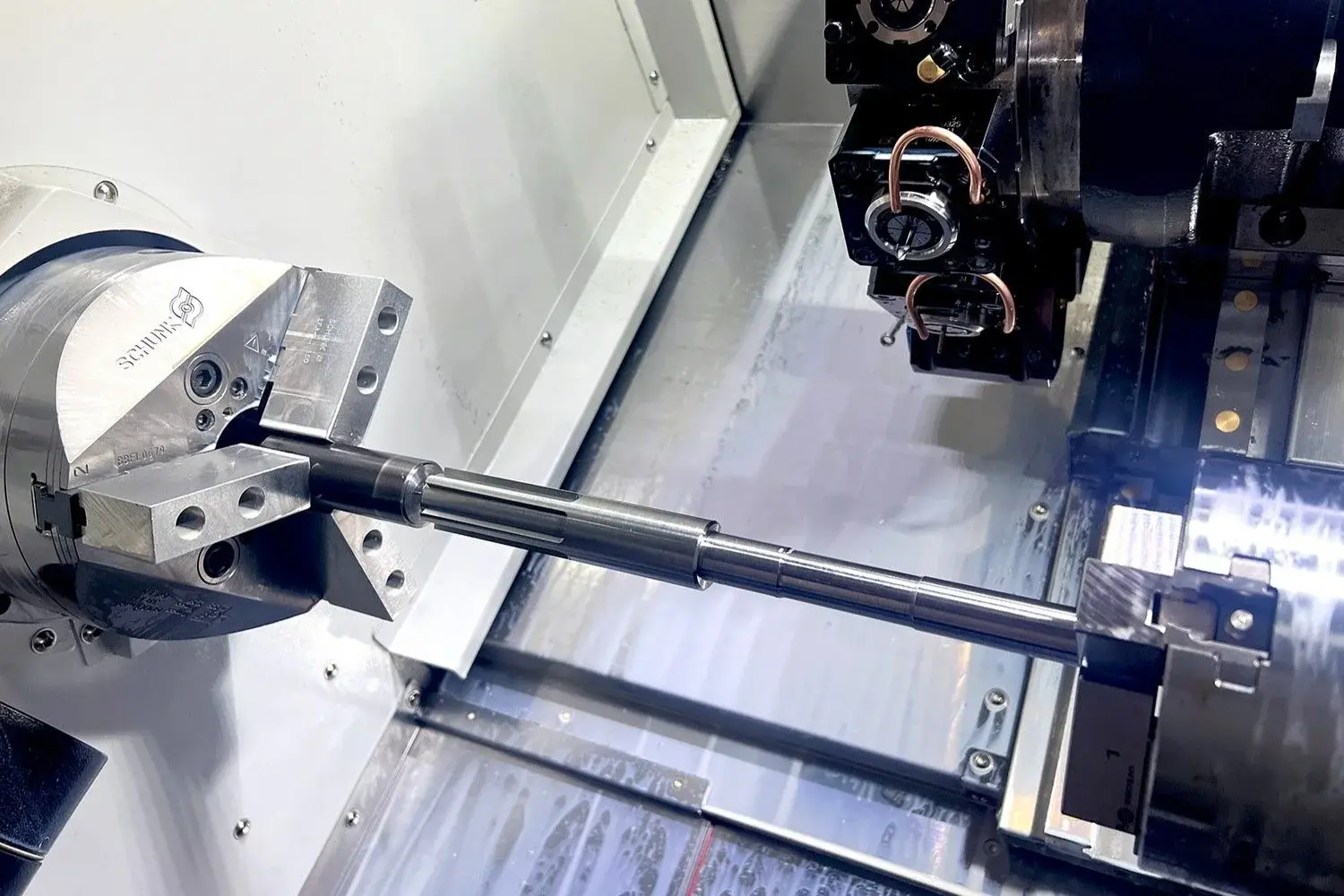

5-Axis Turning
Text Goes Here

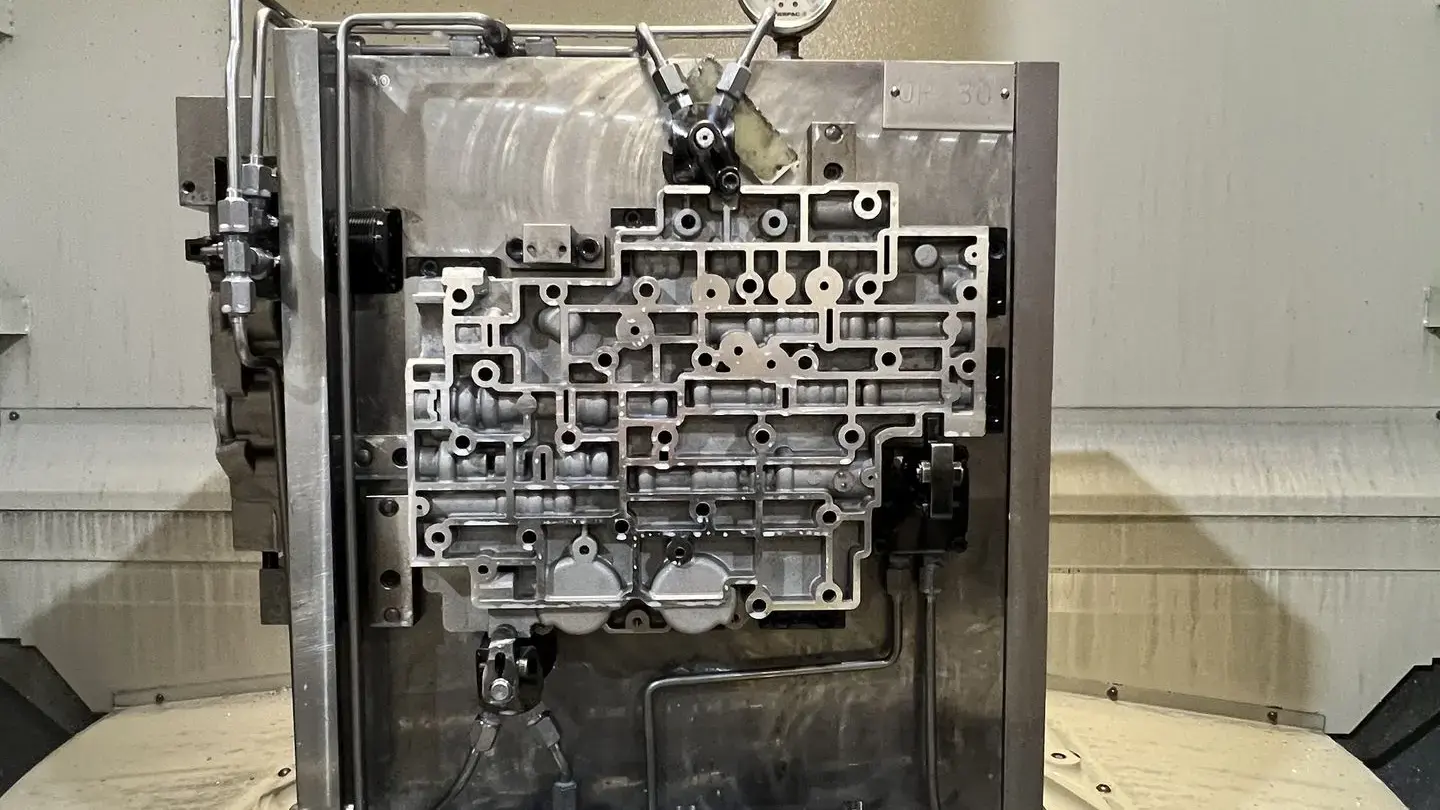

Horizontal Machining
Text Goes Here
CNC Machining Capacities
Feature | Description |
Maximum Part Size | Milled parts up to 80” x 24” x 30”. Lathe parts up to 62” length and 18” diameter. |
General Tolerances | Tolerances on metals will be held to +/- 0.005" unless otherwise specified. |
Precision Tolerances | ACAL can manufacture and inspect to tight tolerances per your drawing specifications including GD&T callouts. |
Minimum Hole Size | 0.015”. This may vary depending on part geometry and chosen material. |
Threads and Tapped Holes | ACAL can accommodate any standard thread size. We can also machine custom threads; these will require a manual quote review. |
Surface Finish | The standard finish is as-machined: 125 Ra or better. Additional finishing options can be specified when getting a quote. |
Machining Equipment
LATHE
- Mazak Quick Turn QT20 CNC
- Mazak Quick 18N Universal CNC
- Mazak Quick Turn Universal 350
- Hardinge Super Precision DSM-59
- Mazak Nexus 100
- Haas ST-35LY CNC Turning Center (with live tooling)
MILL
Vertical
- Mazak VTC-300C
- Bridgeport w/2 Axis Digital Readout
- Bridgeport w/Prototrak 2 Axis CNC
- Hurco VM1 VME1 CNC (with 4th Axis)
- Hurco VMX42 (with 4th Axis)
- Hurco VMX50i (with 4th Axis)
Horizontal
- Makino A71NX
- Mazak Horizontal 5000II
- Mazak Horizontal 6000E
- Mazak Horizontal 6800
- Hurco Vertical HXT500
5-Axis
- Hurco VMX30Ui
